Part No.

Center
Frequency
(MHz)

Band Width
(MHz)

Insertion
Loss
(dB) max.

V.S.W.R
max

Attenuation
(dB) min.
(MHz)

Dimension
W×L×H
(mm)

Application

CAD48C3430/3530P60A

Tx

3430.0

fo±30

6.5

2.0

18(fr±30)

36×44×5.5

MMDS

Rx

3530.5

fo±30

6.5

2.0

18(ft±30)

CAD59C830/875P10A

Tx

830.0

fo±5

2.5

1.5

55(fr±5)

47×19×7.0

CHINA CDMA

Rx

875.0

fo±5

2.5

1.5

55(ft±5)

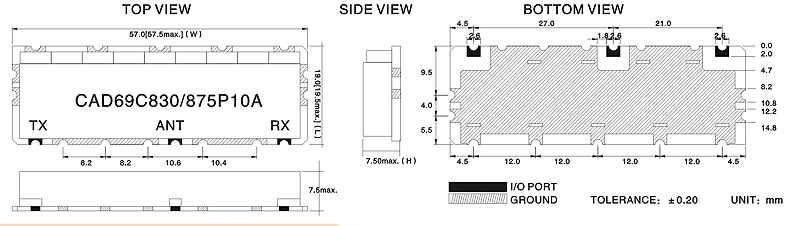

CAD69C830/875P10A

Tx

830.0

fo±5

2.8

1.5

50(fr±5)

57×19×7.5

Rx

875.0

fo±5

2.5

1.5

60(ft±5)

CAD108C830/875P10A

Tx

830.0

fo±5

2.0

1.5

48(fr±5)

100×34×14

Rx

875.0

fo±5

2.0

1.5

50(ft±5)

CAD59C1950/2140P60A

Tx

1950

fo±30

3.0

1.8

45(fr±30)

47×18×7.0

IMT-2000

Rx

2140

fo±30

3.0

1.8

45(ft±30)

CAD36C902/947P25A

Tx

902.5

fo±12.5

2.4

1.7

32(fr±12.5)

21×15×4.5

GSM

Rx

947.5

fo±12.5

3.2

1.8

30(ft±12.5)

CAD59C902/947P25A

Tx

902.5

fo±12.5

4.3

1.8

42(fr±12.5)

47×19×7.0

Rx

947.5

fo±12.5

3.8

1.8

45(ft±12.5)

CAD69C897/942P25A

Tx

897.0

fo±12

3.1

1.5

44(fr±12.5)

57×19×7.5

Rx

942.5

fo±12

3.1

1.5

45(ft±12.5)

CAD69C1747/1842P75A

Tx

1747.5

fo±37.5

3.8

1.5

25(fr±37.5)

47×18×7.0

DCS

Rx

1842.5

fo±37.5

3.8

1.5

18(ft±37.5)

CAD36C1595/2492P50/40A

Tx

1595.0

fo±25

2.5

1.8

30
(2200~2300)

20×14×4.0

Beidou Satellite Position System

Rx

2492.0

fo±20

3.0

1.8
