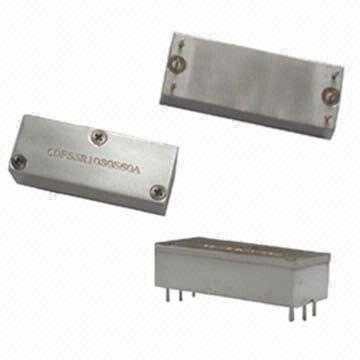

Dielectric
Filter (Pinout Type)
-Microwave telecommunication, radar, electronic counterwork,
aviation and spaceflight, navigation, etc.
Configuration
Dimension
Dimension
Part No.
W
L
H
W1
W2
L1
H1
LJ□-C-□
23.0
9.0~12.0
8.0
14.0
19.0
6.0
7.2
LJ□-D-□
30.0
9.0~12.0
8.0
21.0
26.0
6.0
7.2
LJ□-E-□
32.0
9.0~12.0
7.5
24.0
28.2
6.0
6.6
LJ□-F-□
39.5
9.0~12.0
7.5
31.5
36.0
6.0
6.6
Typical Characteristic
LJ□-D-□
LJ□-E-□
LJ□-F-□
Principal Parameters
Part
No.
Center
Frequency
(MHz)
Band
Width
(MHz)
Insertion
Loss
(dB) max.
Ripple
in Band Width
(dB)max.
V.S.W.R
max
Attenuation
(dB) min.
(MHz)
Operation
Temperature
(℃)
LJ□-C-□
900.0
±10.0
2.5
1.0
1.5
50
at fo±100
-60~+100
LJ□-C-□
1200.0
±15.0
2.0
1.0
1.5
50
at fo±110
LJ□-D-□
950.0
±10.0
2.0
1.0
1.5
50
at fo±50
LJ□-D-□
1051.0
±10.0
2.5
1.0
1.5
40
at fo±50
LJ□-E-□
1004.0
±10.0
2.5
1.0
1.5
50
at fo±50
LJ□-F-□
945.0
±10.0
3.0
1.0
1.5
60
at fo±50
Note:① Fo available on request.
② Other parameters available on request.
FEATURES
Specifications, high reliability
Stability, consistency, good
Wide temperature range (-60 to +100 ℃), strong ability
to adapt to the environment, and anti-excellent performance
METHOD OF DEFINITION
□□□□
① ② ③ ④
①Dielectric Filter LJ：Pinouts Type TEF：TEF Type
②Center Frequency
③Number of resonator C：3
D：4
E：5
F：6
H：8
④Band Width
