Dielectric
Filter (Pinouts Type)
-Microwave telecommunication, radar, electronic counterwork,
aviation and spaceflight, navigation, etc.

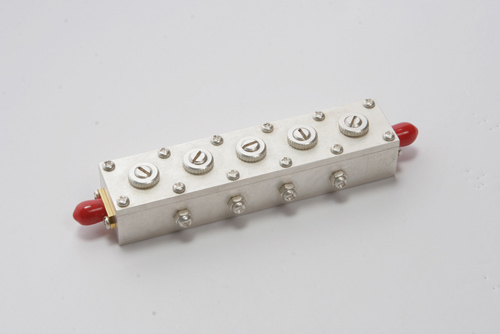

Configuration
Dimension
mm
(Tolerance:±0.3)

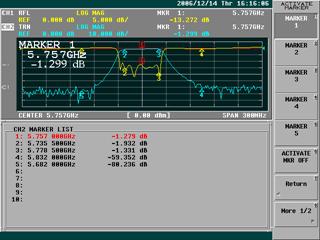

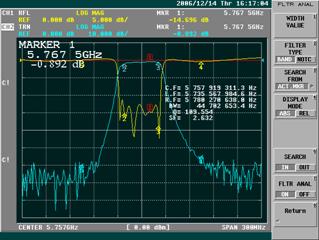

Typical Characteristic
Principal Parameters
Part
No.
Center
Frequency
(GHz)
Band
Width
(MHz)
Insertion
Loss
(dB) max.
Ripple
in Band Width
(dB)max.
V.S.W.R
max
Attenuation
(dB) min.
(MHz)
Operation
Temperature
(℃)
TEF□-F-□
5.5
25
2.0
0.5
1.5
70
at fo±50
-60~+100
TEF□-F-□
5.8
43
2.0
1.0
2.0
60
at fo+75
55 at fo-75
TEF□-E-□
5.5~5.6
16
5.0
1.0
1.5
20
at fo±20
TEF□-E-□
6.5~12.5
50
2.0
0.5
2.0
80
at fo-250
60 at fo+250
TEF□-E-□
13.5~15.5
50
2.0
0.5
2.0
70
at fo-250
50 at fo+250
TEF□-E-□
16.5
50
2.0
0.5
2.0
70
at fo-250
45 at fo+250
TEF□-E-□
17.5
50
2.0
0.5
2.0
70
at fo-250
35 at fo+250
TEF□-H-□
5.6
56
1.5
1.0
1.5
65
at fo±100
Note:① fo available on request.
② Other parameters available on request.
FEATURES
Specifications, high reliability
Stability, consistency, good
Wide temperature range (-60 to +100 ℃), strong ability
to adapt to the environment, and anti-excellent performance
METHOD OF DEFINITION
□□□□
① ② ③ ④
①Dielectric Filter LJ：Pinouts Type TEF：TEF Type
②Center Frequency
③Number of resonator C：3
D：4
E：5
F：6
H：8
④Band Width
