Part No.

Center
Frequency
(MHz)

Band Width
(MHz) min.

Insertion
Loss
(dB) max.

Ripple in BW
(dB) max.

V.S.W.R
max

Attenuation
(dB) min.
(MHz)

Dimension
W×H×L(max.)
(mm)

CMF23C1472S40A

1472.0

fo±20

3.0

0.8

2.0

20 at fo±72

5.7×2.0

CMF23C2140S60A

2140.0

fo±30

3.0

0.5

1.5

25 at fo±150

5.7×2.0

CMF33C735S30A

735.0

fo±15

3.0

1.0

2.0

38 at fo±110

8.5×3.0

CMF33C851S36A

851.0

fo±18

3.0

1.0

2.0

38 at fo±110

8.5×3.0

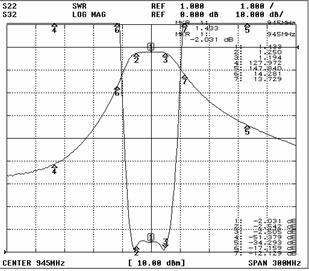

CMF33C945S30A

945.0

fo±15

2.5

0.8

2.0

32 at fo±100

8.5×3.0

CMF33C1694S40A

1694.0

fo±20

3.5

1.0

2.0

10 at fo±40

8.5×3.0

CMF43C950S15A

950.0

fo±7.5

4.0

1.0

1.8

30 at fo±50

11.8×3.8

CMF43C1500S50A

1500.0

fo±25

2.5

1.0

2.0

30 at fo±100

11.8×3.8

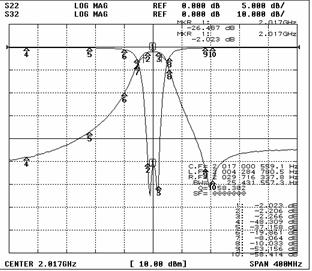

CMF43C2017S15A

2017.5

fo±7.5

3.0

0.5

1.5

35 at fo±88.5

11.8×3.8

CMF43C3200S20A

3200.0

fo±10

4.5

1.0

1.8

35 at fo±70

11.8×3.8

CMF43C4700S20A

4700.0

fo±10

6.0

1.0

1.5

40 at fo±100

11.8×3.8

CMF53C400S04A

400.0

fo±2

3.0

1.0

1.5

30 at fo±50

12.0×5.0

CMF63C1472S40A

1472.0

fo±20

1.0

0.5

2.0

25 at fo±100

17.0×5.8

CMF63C2200S120A

2200.0

fo±60

2.0

1.0

2.0

60 at fo-450

17.0×5.8

CMF44C796S03A

796.0

fo±1.5

4.0

1.0

1.5

20 at fo±20

15.2×3.8

CMF44C945S30A

945.0

fo±15

3.0

1.0

2.0

30 at fo±50

15.2×3.8

CMF44C1150S36A

1150.0

fo±18

3.0

1.0

2.0

20 at fo±36

15.2×3.8

CMF44C2980S50A

2980.0

fo±25

3.0

1.0

2.0

50 at fo±200

15.2×3.8

CMF44C3880S40A

3880.0

fo±20

4.0

1.0

2.0

25 at fo±100

15.2×3.8

CMF54C500S20A

500.0

fo±10

4.0

0.8

1.8

45 at fo±70

20.0×5.0
