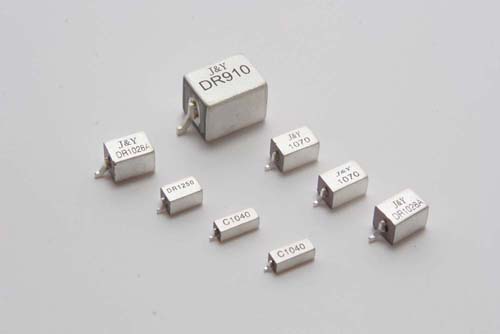

TEM
Mode Dielectric Resonator
-for wireless telecommunication, mobile telecommunication,
power supply resonator, wireless tone equipment, duplexer,
filter, etc.

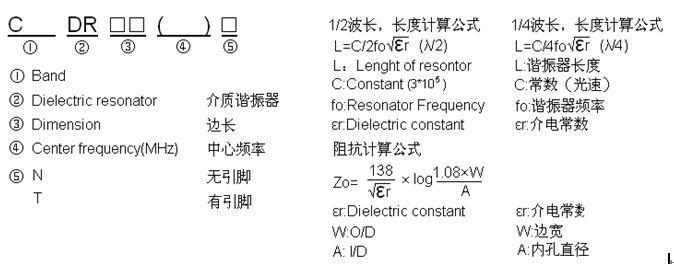

Configuration

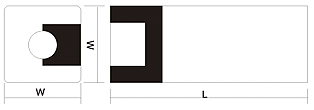

Dimension

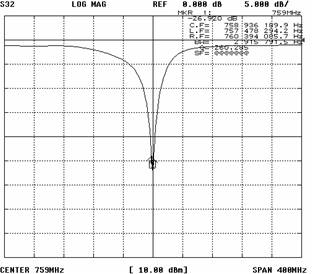

Typical Characteristic
Specification
Part
Type
W(O/D)
(mm)
A(I/D)
(mm)
B
(mm)
C
(mm)
T
(mm)
D120
12.0±0.2
①φ4.0±0.2
Without
tab
/
/
②φ3.55±0.2
1.5
3.2
1.0
D100
10.0±0.2
①φ3.3±0.2
1.3
3.0
1.0
D80
8.0±0.2
①φ2.7±0.2
1.3
2.6
0.7
D60
6.0±0.2
①φ2.5±0.2
②φ2.2±0.2
without
tab
/
/
③φ2.0±0.2
1.2
2.4
0.7
D50
5.0±0.2
①φ1.8±0.2
②φ1.5±0.2
1.0
2.2
0.6
D40
4.0±0.1
①φ1.8±0.1
0.8
1.8
0.6
②φ1.5±0.1
③φ1.2±0.1
without
tab
/
D30
3.0±0.1
①φ1.0±0.1
0.7
1.5
0.5
D20
2.1±0.1
①φ0.6±0.1
0.5
1.2
0.5
Available Range of TEM Mode Resonators
Material
Dielectric
Constant
Tf1)
Type
Characteristic
Impedance(Ω)
Wave
Length
Frequency
Range(MHz)
Q2)
(min)
A
Series
20±1
0±10
D120
①15
②17
λ/4
800~1300
800
λ/2
1600~2700
1000
D100
16
λ/4
800~1300
700
λ/2
1600~3200
800
D080
15
λ/4
1000~3200
650
λ/2
2000~3000
700
D060
①12
②14 ③15
λ/4
1000~2700
550
λ/2
2000~3000
600
D050
①14
②17
λ/4
1300~3000
450
λ/2
2500~4000
500
D040
①11
②14 ③17
λ/4
1300~4000
380
λ/2
2500~4000
400
D030
15
λ/4
1900~4000
320
D020
17
λ/4
2800~5000
250
B
Series
36±1
0±10
D120
①12
②13
λ/4
600~1000
700
λ/2
1200~2400
900
D100
12
λ/4
600~1200
600
λ/2
1200~2400
800
D080
12
λ/4
800~1500
500
λ/2
1600~3000
700
D060
①10
②11 ③12
λ/4
800~1800
450
λ/2
1600~3500
550
D050
①11
②13
λ/4
800~1800
380
λ/2
1600~3500
450
D040
①9
②11 ③13
λ/4
1000~2700
320
λ/2
2000~4800
400
D030
12
λ/4
1300~3000
220
D020
13
λ/4
1300~3000
220
C
Series
80±2
0±10
D120
①7
②8
λ/4
400~800
650
λ/2
800~1500
700
D100
7
λ/4
600~800
550
λ/2
1200~2400
650
D080
7
λ/4
440~1000
450
λ/2
1000~1500
550
D060
①6
②7 ③7
λ/4
440~1300
400
λ/2
1000~2200
470
D050
①7
②8
λ/4
500~1800
380
λ/2
1000~3000
450
D040
①6
②7 ③8
λ/4
900~1600
200
λ/2
2000~4800
300
D030
7
λ/4
900~1600
250
D020
8
λ/4
900~1600
150
1)Frequency stability of temperature
2)Q value depends on lower limit of frequency range
