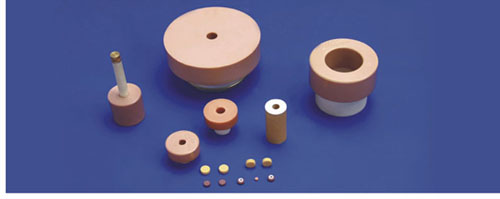

TE01δ/HE11/TM
Mode Dielectric Resonator
-For Dielectric Cavity Filter, Duplexer,
Combiner used in Base Station.
- With High Q value and easy to control Tf
|
|
|
| |
Configuration |
|
Typical Characteristic
|
|
|
|
|
TE01δ
Mode Dielectric Resonator |
| |
Principal
Parameter |
|
Part No.
|
Dielectric
Constant
|
Resonant
Frequency
|
Temperature
Coefficient
|
Unloaded
Q value
|
Outer
dimension
|
Inter
dimension
|
Thickness
|

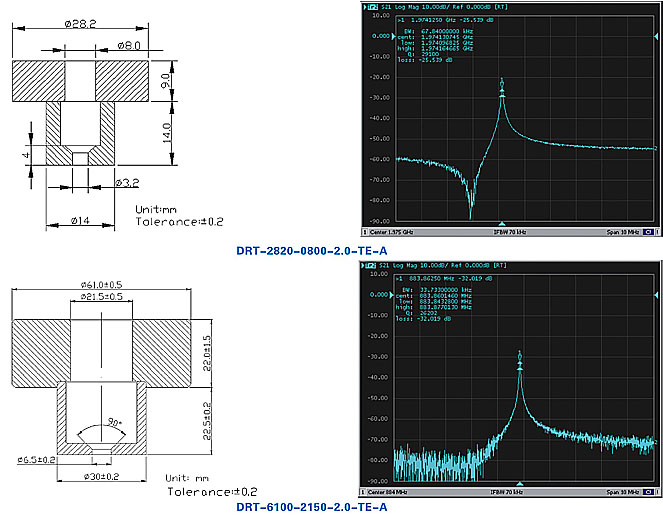

DRT-5600-3100-2.0-TE-A |
44-46 |
915~965 |
-6~+9 |
20000
min. |
56.00 |
31.00 |
27.00 |
DRT-6100-2159-2.5-TE-A |
44-46 |
888 |
-6~+9 |
25000
min. |
61.00 |
21.59 |
23.00 |
DRT-2820-0800-2.0-TE-A |
39~41 |
1980 |
-3~+9 |
20000
min. |
28.20 |
8.00 |
12.50 |
|
| |
HE11
Mode Dielectric Resonator |
| |
Principal
Parameters |
|
Part No.
|
Dielectric
Constant
|
Resonant
Frequency
|
Temperature
Coefficient
|
Unloaded
Q value
|
Outer
dimension
|
Inter
dimension
|
Thickness
|
DRT-8500-0900-1.4-HE-A |
44~46 |
890 |
-6~+9 |
14000
min. |
85.00 |
9.00 |
20.00 |
|
| |
TM
Mode Dielectric Resonator |
| |
Principal
Parameters |
|
SPEC
|
Dielectric
Constant
|
Resonant
Frequency
(MHz) |
Temperature
Coefficient
(ppm/℃) |
Unloaded
Q value
|
Outer
dimension
|
Inter
dimension
|
Thickness
|
DRT-1600-0580-1.5-TM-A |
35~37 |
2100 |
-3~+9 |
15000
min. |
16.00 |
5.80 |
28.20 |
|
| Note:The
data for reference only, Design it as customer's
request. |
| |

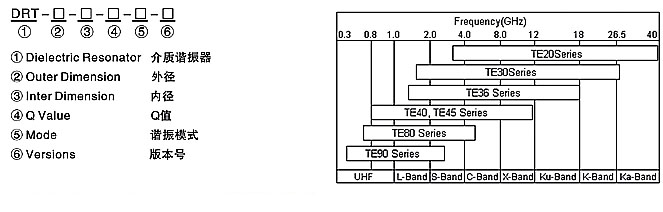

Method of Definitio |
|
Frequency Chart |
|
 |
Available
Range by Every Material |
|
Material
Series
|
Dielectric
Constant
|
Fo·Q(1/tanδ)
|
Temperature
Coefficient
(ppm/℃)
|
Insulation
Resistance
(Ω-cm)
|
Application
Frequency Range
|
Application
Range
|
TE20 |
19~22 |
6,000@10GHz |
-3~+6 |
>1014 |
Refer
Frequency Chat
|
Refer
Frequency Chat
|
TE30 |
29~30 |
15,000@10GHz |
-3~+6 |
>1014 |
TE36 |
35~37 |
10,000@4GHz |
-3~+9 |
>1014 |
TE40 |
39~41 |
18,000@4GHz |
-3~+6 |
>1014 |
TE45 |
44~46 |
10,000@4GHz |
-6~+9 |
>1014 |
TE80 |
79~81 |
7,000@1GHz |
-3~+9 |
>1014 |
TE90 |
89~91 |
7,000@1GHz |
-4~+12 |
>1014 |
| FEATURES |
-High Q Value
-Easy to controlτf
-Many kinds of material with various dielectric constants
|
| APPLICATIONS
|
-Cellular Base Station Filter and
Combiners
-PCS/PCN Filters & Combiners -PCS/PCN
-Direct Broadcast Satellite Receivers
- Police Radar Detectors
-LMDS/MMDS Wireless Cable TV
-Automobile Collision Avoidance Sensors
-Dielectric Resonator Antennas
-LNB |
|
