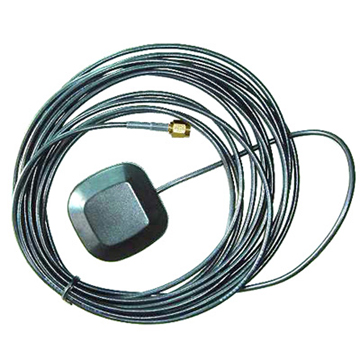

GPS External Active Module
-For GPS Car Navigation System and so on.
Configuration

Principal Parameters

Part No.

Antenna Size

Voltage

Connector

DAMA1575AT42A

25¡Á25¡Á4mm

5V

SMA

DAMA1575AT42B

25¡Á25¡Á4mm

5V

SMB

DAMA1575AT42C

25¡Á25¡Á4mm

5V

BNC

DAMA1575AT42D

25¡Á25¡Á4mm

5V

MCX

DAMA1575AT42E

25¡Á25¡Á4mm

5V

MMCX

DAMA1575AT41A

25¡Á25¡Á4mm

3V

SMA

DAMA1575AT41B

25¡Á25¡Á4mm

3V

SMB

DAMA1575AT41C

25¡Á25¡Á4mm

3V

BNC

DAMA1575AT41D

25¡Á25¡Á4mm

3V

MCX

DAMA1575AT41E

25¡Á25¡Á4mm

3V

MMCX

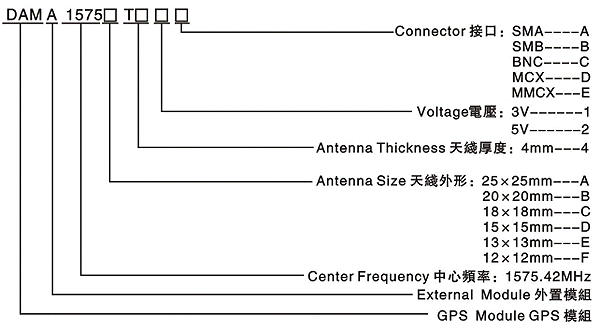

METHOD OF DEFINITION

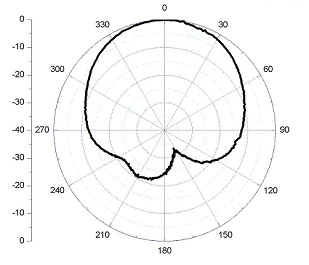

RADIATION PATTERN

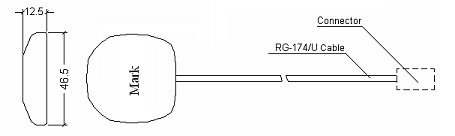

DIMENSION
