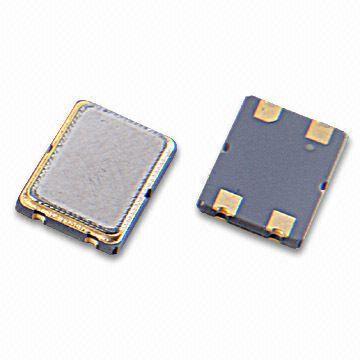

Clock Crystal Oscillators (JYP05/07 )
Configuration






Principal Parameters



Parameter

JYP05/07

Parameter Value

Frequency Range

1 ~ 150 Mhz

Frequency Accuracy

+/-15 PPM

Frequency Stability  vs Temperature

+/- 10 PPM ~ +/- 50 PPM

Aging

+/-3 PPM / year

Output Type

TTL / HCMOS

Supply Voltage

+3.3 V , + 5.0 VDC

Supply Current

< 20 M ：20 mA(max) < 60 M : 50 mA(max) >60M：80 mA(max)

Storage Temperature Range

 -50 ~ +90 ℃
Application
Mobile Communication Equipments, 3G Communication , Wireless Base Station, Repeater , GPS , GSM,CDMA ,SDH/SONT, PDH , Instruments and meters with high precision ，Electricity Measure Equipments , Specialized Network, Military Radio Stations and Radar Equipments, Remote Sensing and Consumer Electronics Products Etc .
Feature
High Stability ,Low Aging ,Small Size , Wide Temperature Range
