Parameter

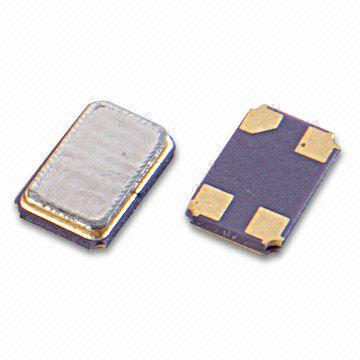

JYT05/07

Parameter Value

Frequency Range

10 ~ 30 Mhz

Frequency Accuracy

+/-2.5 PPM Max . ( Center Control Voltage )

Frequency Stability  vs Temperature

+/- 1 PPM ~ +/-2.5 PPM

Aging

+/-1 PPM / year

Output Type

Clipping Sine

Supply Voltage

+3.3 VDC, + 5VDC

Frequency Stability vs Load

+/- 0.3PPM vs +/- 10% load change

Frequency Stability vs Voltage

+/- 0.3 PPM vs +/- 5 % voltage change

Supply Current

2 mA (Typical )

Adjustable Frequency Range

+/-8 PPM

Control Voltage Range

0 ~ 3.3 V / 0 ~ 5 V

Slope

Positive

Linearity

+/- 10%

Phase Noise (10Mhz )

1kHz , -130 dBc/ Hz

 -50 ~ +90 ℃
